Experiments

Experiment Overview

• Components: RL Agent Training, Data Generation, Estimation.

RL Agent Training

• Algorithm: DQN with replay buffer, epsilon–greedy exploration, and periodic target network synchronization.
• Environment: discrete-action env with legal action masks; observations are flattened boards.
• Evaluation: periodic greedy evaluation reports success_rate and avg_steps (higher is better here due to monotonic, no‑rollback dynamics); optional final PNG/GIF render of the best policy rollout.
• Model selection: we keep the best checkpoint rather than the last one (selected by maximizing evaluation metrics — primarily success_rate, with avg_steps as a secondary criterion under the monotonic setting).

Data Generation

• Source policy: load a trained checkpoint.
• Behavior model: masked softmax over Q-values, \(π(a|s, β) ∝ \exp(β·Q(s,a))\) on legal actions; \(β\) is per-participant (lognormal or fixed).

Estimation

• Objective: jointly estimate per-participant inverse temperatures (\(β\)) and a shared \(Q(s, a)\) from generated trajectories.
• Method: alternating updates — E‑step (Newton updates on \(z = \log β\) with Gaussian prior), M‑step (optimize \(Q\) by behavior NLL with soft Bellman and CQL regularizers). Policy head can use \(Q\) directly or normalized advantages.

Environment: Peg Solitaire

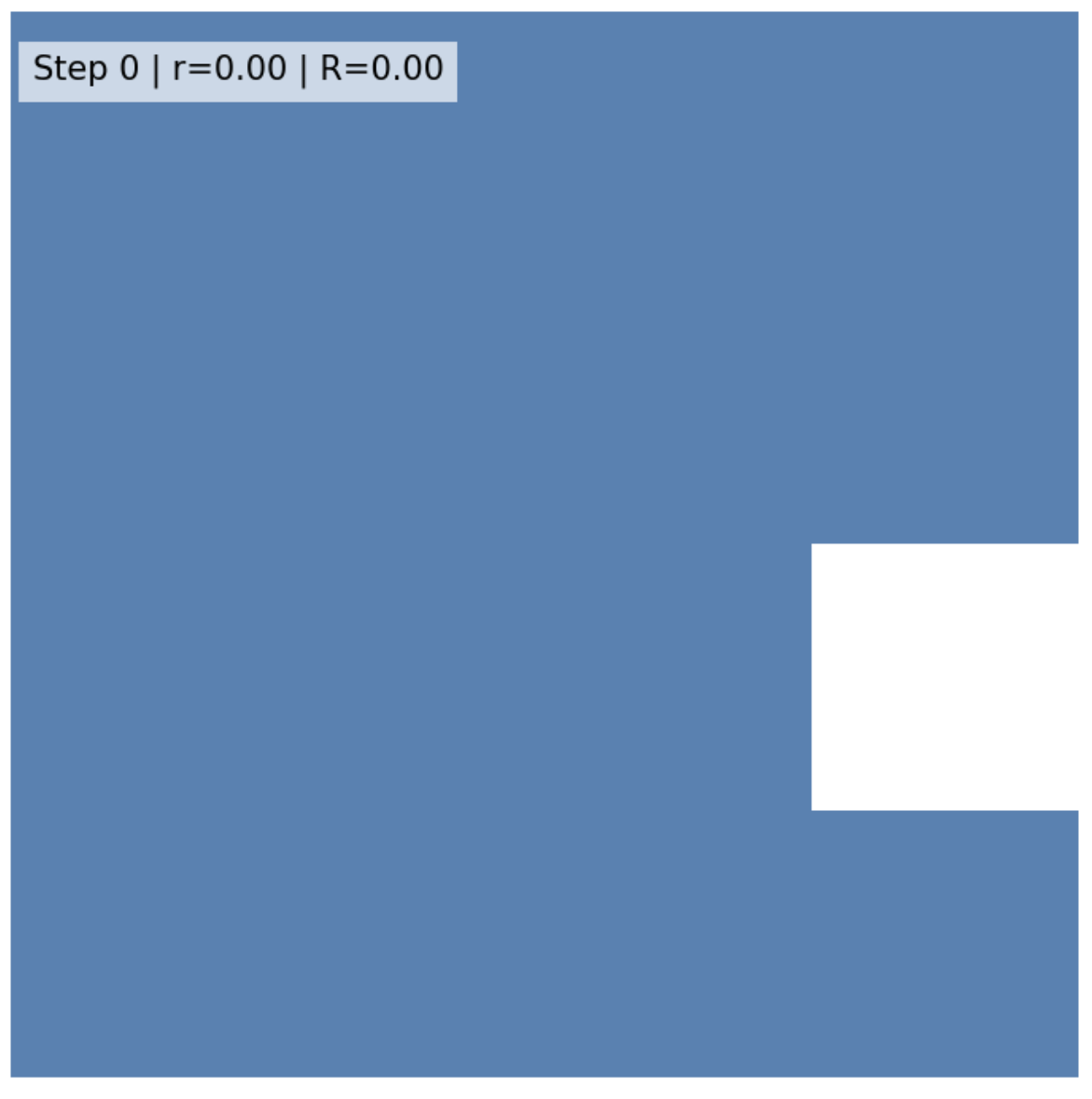

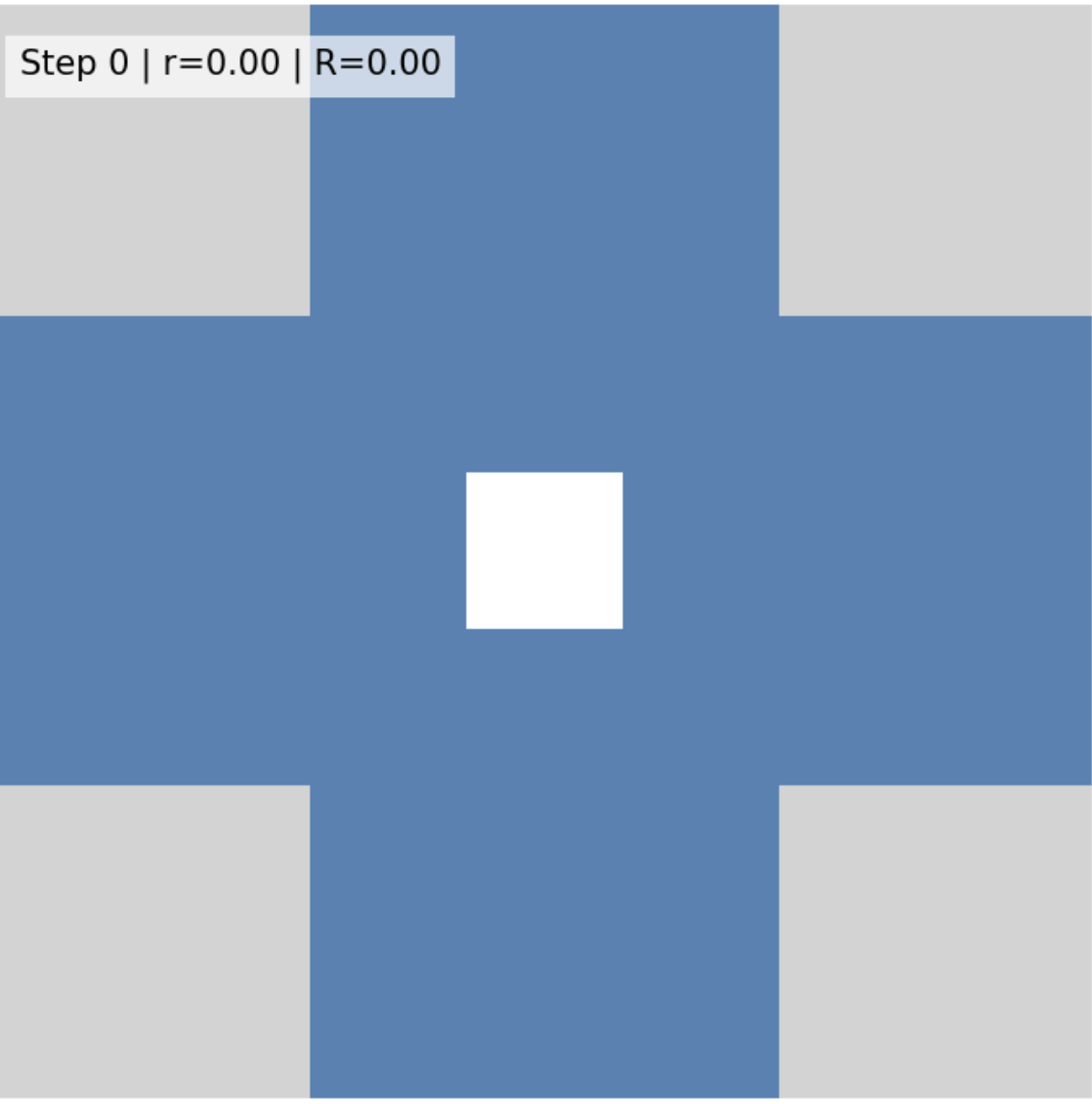

4×4 full	7×7 English (33-hole cross)

Board	Holes (H)	State upper bound (\(2^H\))	Required jumps to finish (\(d=H-1\))	Implications for RL
4×4 full	16	65,536	14	Small MDP; easy to enumerate; dense-enough transitions; DQN/Tabular feasible; quick convergence; curriculum seed.
7×7 English (33-hole cross)	33	≈ 8.6e9	31	Large horizon + sparse terminal reward; exploration hard; heavy dependence on heuristic shaping, good features, or model-based planning; offline RL needs broad coverage and invariance-aware data.

4×4 Peg Solitaire

Phase 1: RL Agent Training

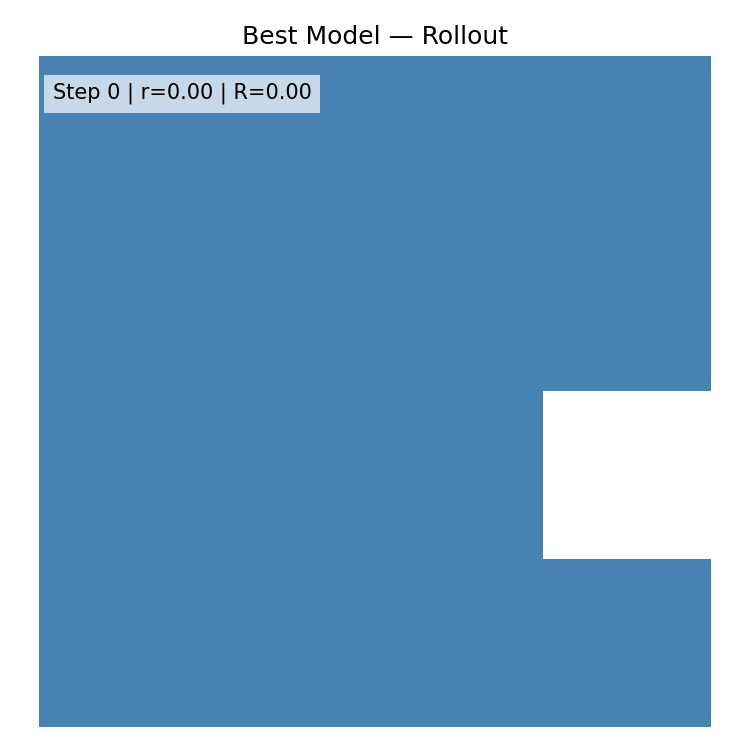

• Best policy rollout (qualitative): the agent consistently solves the 4×4 board under monotonic dynamics (no rollback). The rollout illustrates a valid long‑horizon solution learned by the policy.

• Training dynamics: as training progresses, average steps increase (better in this setting without rollback) and success rate rises toward 100%. Together, these trends indicate stable learning and effective policy improvement under greedy evaluation.

Phase 3: Estimation

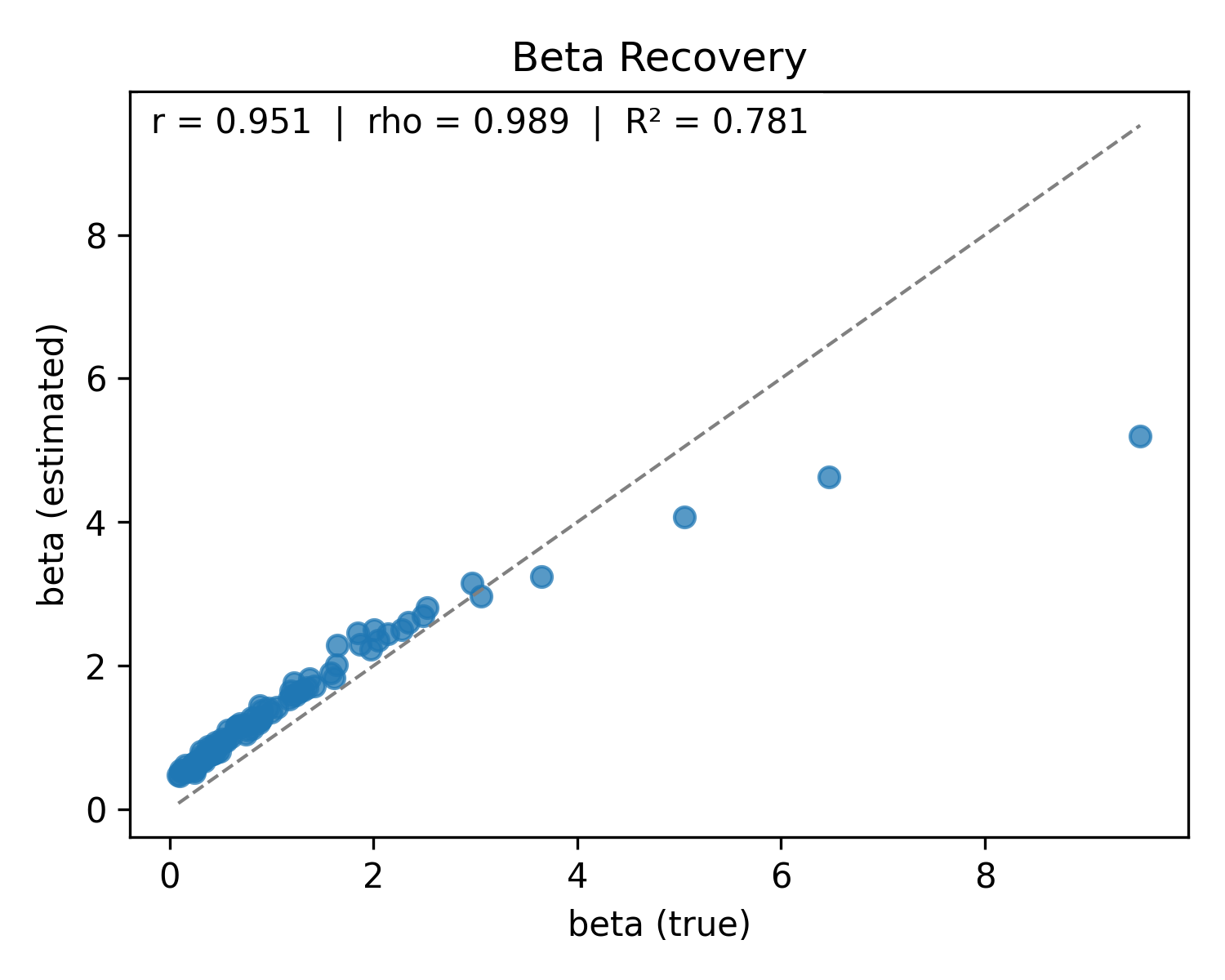

We estimate participant ability (inverse temperature) and compare it with ground truth. Summary metrics for the scatter plot:

• Pearson r: 0.951
• Spearman r: 0.989
• MAE: 0.447
• MAPE: 0.942
• Median absolute error: 0.389
• R²: 0.781

Brief analysis: both Pearson and Spearman are very high, showing strong alignment and, in particular, correct ranking of participants’ abilities. R² is lower mainly due to an outlier at the high end of the scale, which disproportionately increases squared error; despite this, the ordering is well recovered.

7x7 Peg Solitaire

TODO
